Omegon Losmandy-style plate - easy adaptation for 3" mounts
If you want to elegantly and securely connect your telescope or camera equipment to a mount with a 3" (Losmandy-style) connector and without having to tinker around with it or resort to drilling - then this Omegon Losmandy-style plate is just the job.
Mount your telescope in just a couple of minutes
This Omegon mounting plate can deal with any task involving a connection between mount and instrument for you. Usually this will be a telescope, but you can also easily mount virtually any conceivable device. The plate features several 6mm holes for exactly this purpose. This makes attaching your instruments extremely easy and you will no longer have to fiddle around to get things to fit. The pre-drilled holes are normally more than adequate for the task.
Solid aluminium plate - ready-made for heavy telescope loads

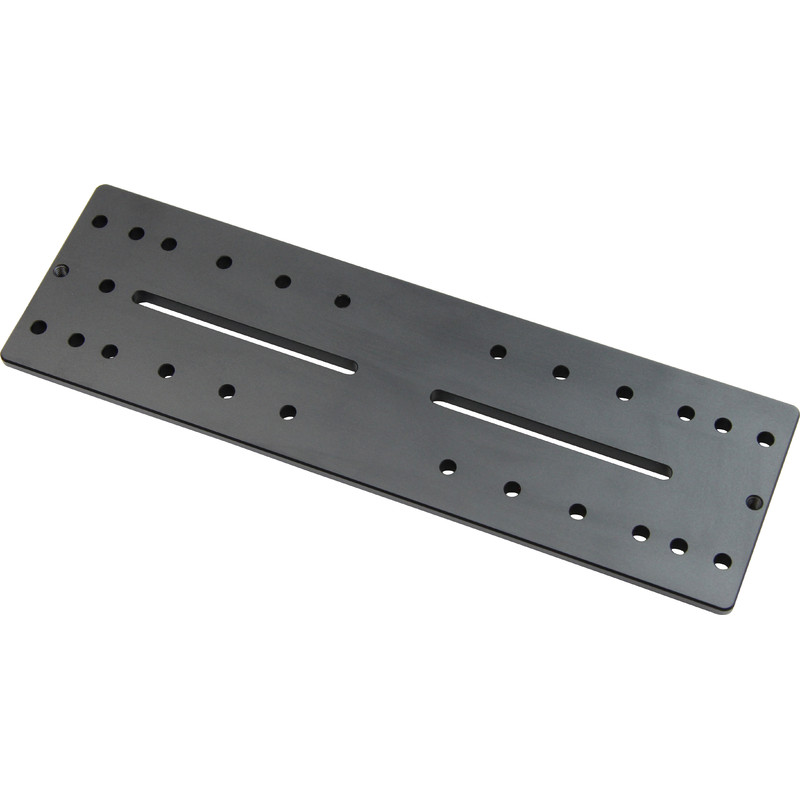

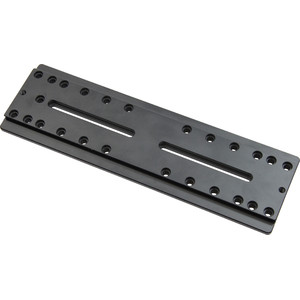

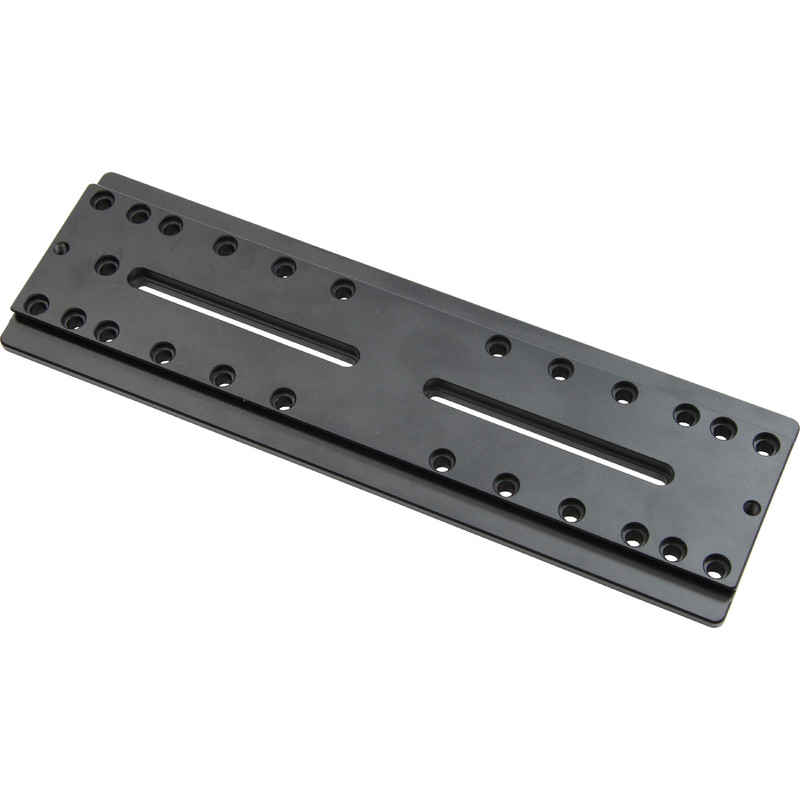

The heavy-duty dovetail plate is machined from solid aluminium and is 13mm thick and 100mm in width. If you have a somewhat larger telescope or other type of heavy equipment, then this mounting plate is more than adequate. The simple dovetail on many telescopes can be a weak point. But this plate is a massive bridge that securely connects the two main parts of a telescope system to each other.
The advantages in a nutshell:
- 3" prism rail, 330mm in length
- suitable for long and heavy telescope OTAs
- 25 holes of 6mm diameter for individual adjustments
- 2 slots, each 105mm length, for taking a separate photo thread screw for example
- each screw head can be sunk into the plate by up to 4mm
