Telescopes > Pro APO > Omegon Apochromatic refractor Pro APO AP 94/517 Triplet ED OTA + Test Report
Product no.: 69541

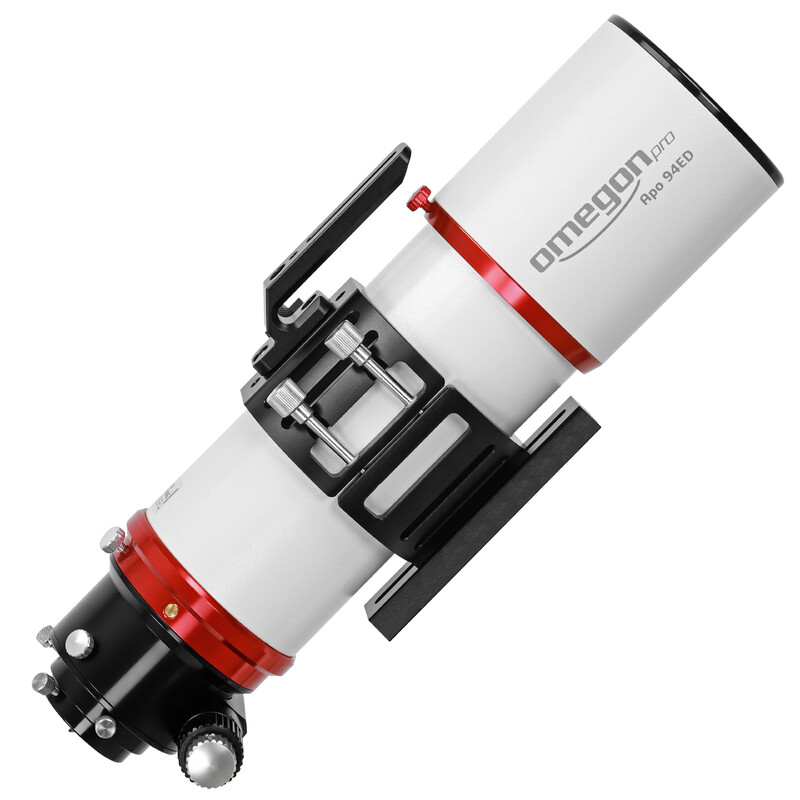

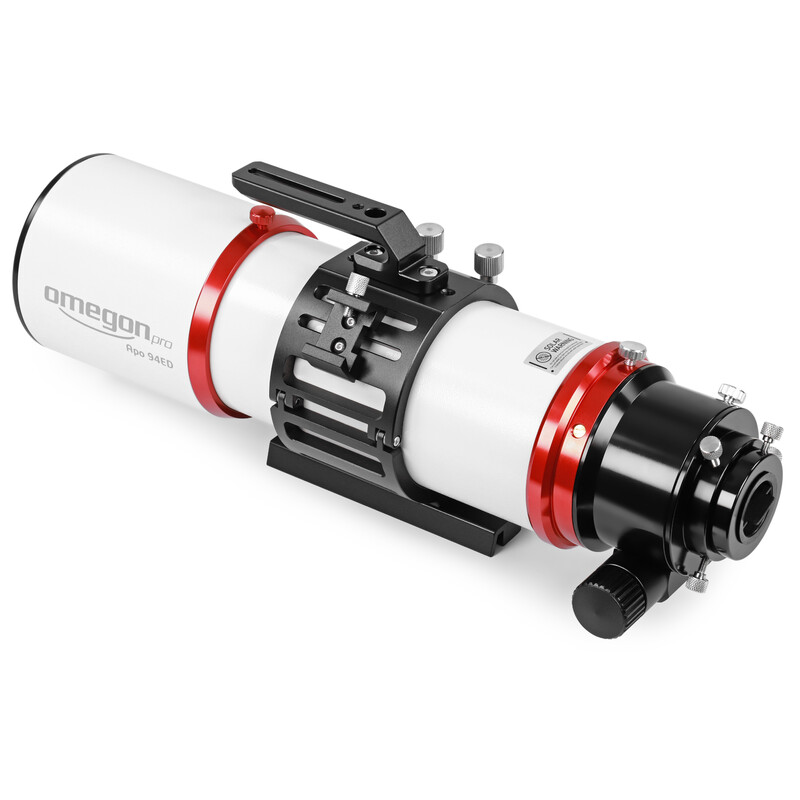

Apochromatic refractor Pro APO AP 94/517 Triplet ED OTA + Test Report

$ 1,339.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series Pro APO...

This telescope is supplied with an individual optical test report!

For exceptional photos. 94mm triplet apochromat with two ED lenses

What is it that drives astrophotographers time and again? The desire to capture objects and the sky in high quality. With this apochromat, you can do just that. The specially selected ED glass and a colour-pure image result in observations displaying fine details that would not be possible with basic optics. Experience a new standard of quality for yourself.

The highlights at a glance:

  • 94mm triplet ED Apo with two ED lenses with extremely good correction for a colour-pure image with good contrast
  • Retractable dew cap for easy transport
  • 3" focuser with a 1:10 reduction ratio: Easily focus larger and heavier cameras with high precision.
  • Camera rotates 360° so you can find the right orientation
  • Vixen-type finder shoe so you can easily mount any finderscope

Why these optics reveal more details
No more images without contrast. This apochromat shows what is really possible: pure-colour and high-contrast observations and astrophotos. The key is a sophisticated optical design with premium ED glass for a crystal-clear image. Compared to most mirror systems, the better-defined optics allow you to see more and finer details when observing the planets, for example. All surfaces of the lens elements are treated with an effective multi-coating to prevent reflections. Enjoy memorable observations and shots.

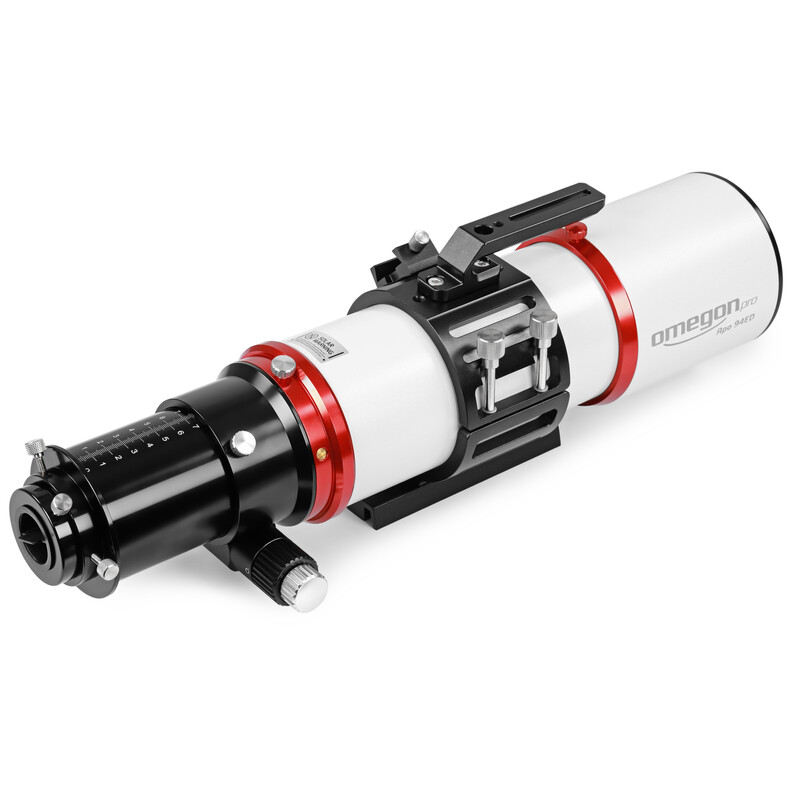

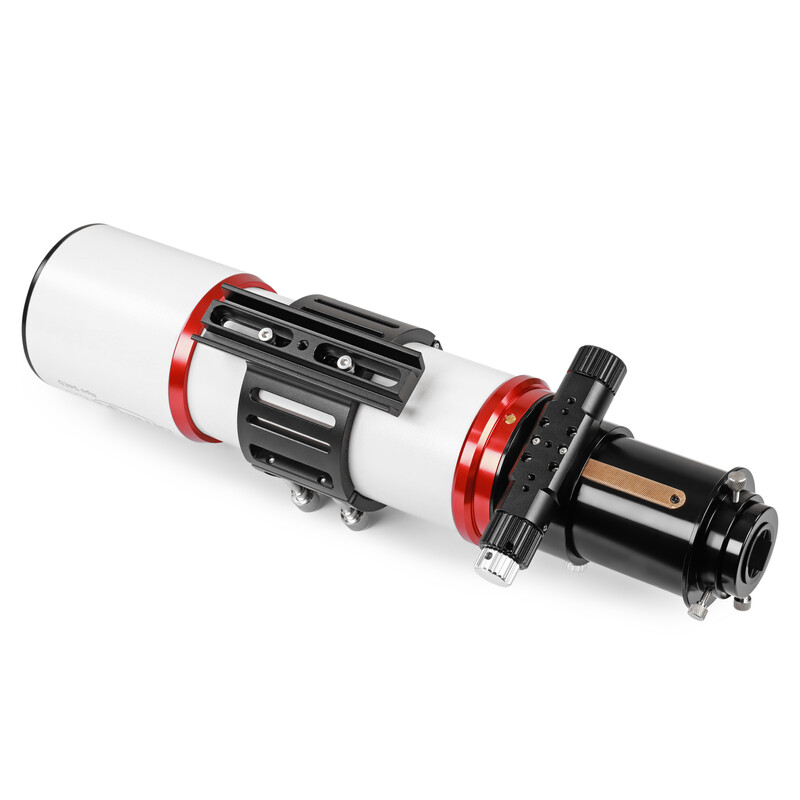

3" focuser with gearing and ball bearings
This 3" geared focuser is a small spatial miracle, yet large enough that no shading occurs. An ingenious hybrid technology comprising a Crayford focuser and a gear wheel makes it particularly strong and suitable for accessories weighing up to 6kg. The ball bearings provide for smooth focusing, allowing you to easily find the perfect focus. A 1:10 reduction gearing makes precise focusing a breeze. Astrophotographers around the world value precisely these features.

2" connector

The focuser has a standard 2" connection with a reduction to 1.25". This allows you to connect all accessories from our range, such as eyepieces and adapters.

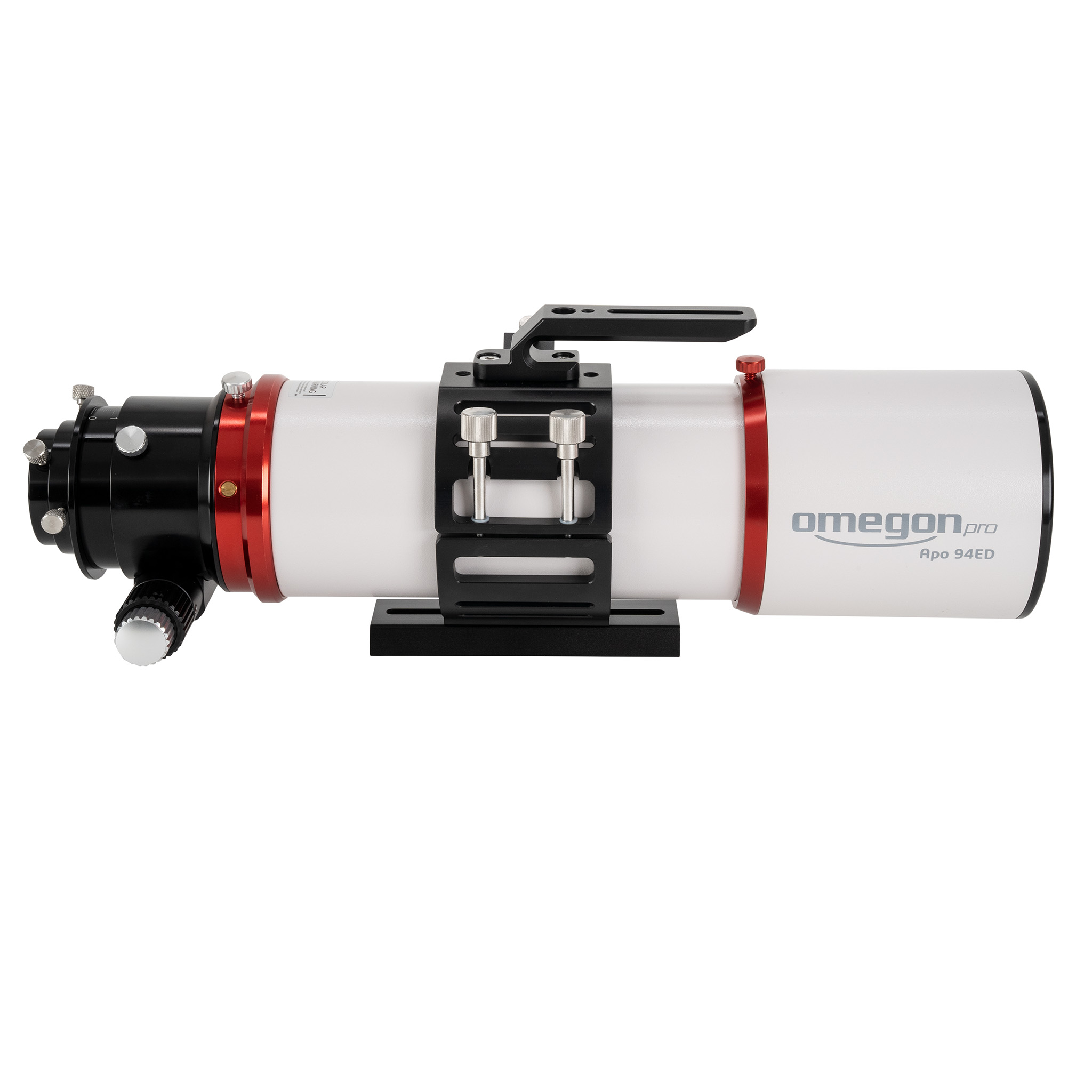

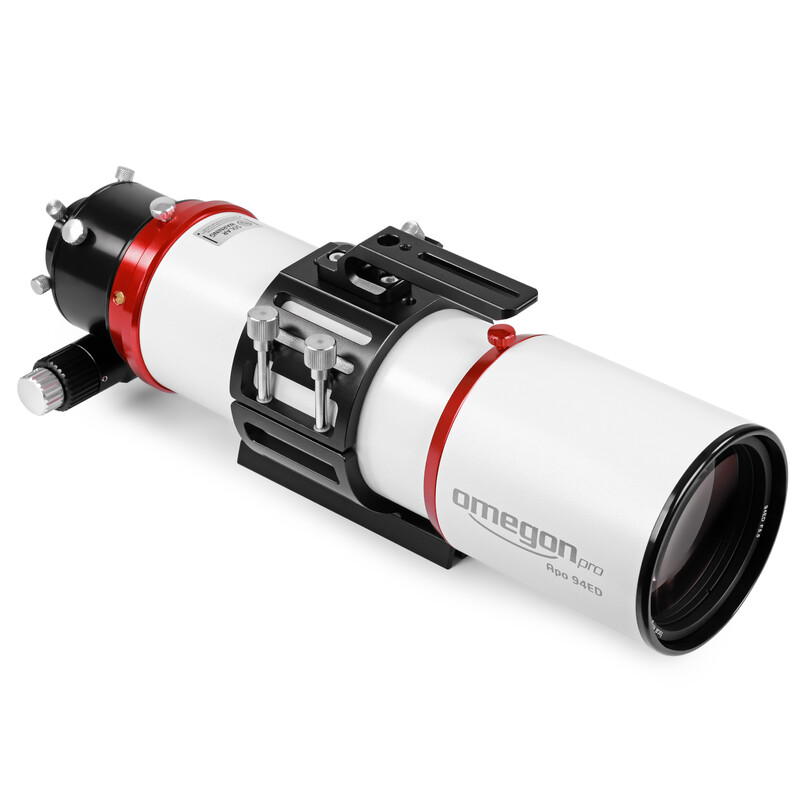

CNC tube designed for the best optics
The tube of the Omegon Apo consists of a CNC machined metal construction with a sophisticated anti-reflective aperture system. The entire tube is lined with a velvet-like, black fabric.

Extending and fixing the dew cap
The Apo's dew cap can be extended. It can be retracted for transport.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
94
Focal length (mm)
517
Aperture ratio (f/)
5,5
Resolving capacity
1,22
Limit value (mag)
11,7
Max. useful magnification
188
tube diameter (mm)
118
Tube construction
Full tube
Light gathering capacity
180
Coating
multiple
lens design
Triplet

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
2
Rotating
yes
Gear reduction
1:10 fine focusing
Adjustment range (mm)
75
Ring clamp
yes

Mount


Type of build
OTA
GoTo control
no
Mounting type
no mount

Included accessories


Eyepiece adaptor
1,25" & 2"
Tube clamps
yes
finder base
Vixen/Skywatcher Level
Prism rail
Vixen-Style
Corrector
without

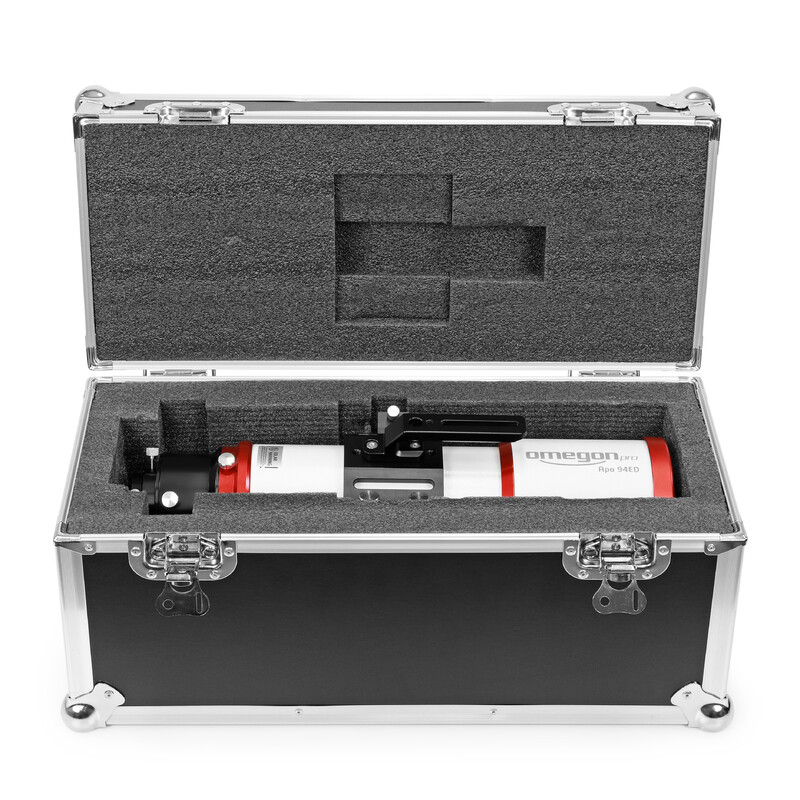

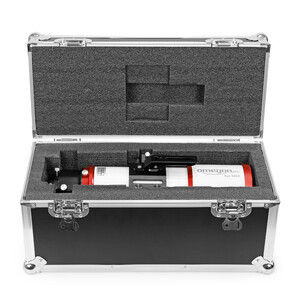

Transport cases
yes
Test protocol
yes

General


Series
Pro APO
Length (mm)
440
Total weight (kg)
4,1

Area of application


Nature Observation
yes
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
yes
Sun
not recommended

Recommended for


Beginners
no
Advanced
yes
Observatories
yes
