Telescopes > Pro Discoverer Dobson > Omegon Dobson telescope N 406/1800 Discoverer Travel 16" L1/10 Truss DOB
Product no.: 20624

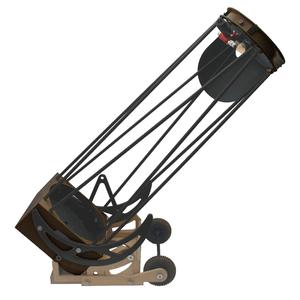

Dobson telescope N 406/1800 Discoverer Travel 16" L1/10 Truss DOB

$ 6,550.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Omegon Discoverer Truss Dobson optics:

Professional truss tube Dobsonians from Omegon are above all distinguished by the very high quality of their mirrors. The Hilux coated Suprax mirror employed boasts a superb 97% reflection and each telescope comes with its own certificate. With mirror diameters of 300mm to 600mm and surface precisions of Lambda 1/6, 1/8 and 1/10, a large selection is available for the most diverse range of uses. These high end instruments also have a carbon fibre, aluminium and steel construction truss tube structure combined with a very rigid rocker box for the base made from bonded multi-layer board.

The smaller 300mm mirror instruments come with a 2” KineOptics helical focuser, while the larger instruments have a 2” MoonLite Crayford focuser. An optional extension kit with two pneumatic tyres is available which allows even the larger telescopes to be easily moved around by just a single person. Additional accessories, such as an appropriate stray light protector for example, are available on request.

In each case, these instruments are available as one of two variants: Travel and Classic. With the Travel version the emphasis has been put on achieving maximum portability, with multi-piece truss tubing and with the upper tube assembly able to be lowered completely into rocker box. In general, the Travel version has been built somewhat less substantially in order to allow the packing dimensions for transport to be significantly reduced, so that even the 24 inch model is relatively easy to transport. In contrast, the Classic version has been designed for maximum rigidity, with one-piece truss tubes and a more substantial design for the wooden rocker box.

With this telescope you receive a CNC-milled, professionally hand-made instrument equipped with a very high specification mirror. Delivery times vary from 3 to 6 months due to the individual fabrication of these instruments required.


Included with Dobsonian telescopes:

  • main mirror and secondary mirror with extremely good surface finish
  • carbon fibre truss tube construction
  • Dobsonian mount constructed from bonded multi-layer board
  • focuser

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page "Telescope ABC" beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
406
Focal length (mm)
1800
Aperture ratio (f/)
4,4
Resolving capacity
0,28
Limit value (mag)
14,8
Light gathering capacity
3360
Max. useful magnification
812
Tube construction
Truss Tube
Coating
Hilux

Reflector


Main mirror´s construction
parabolic
Primary mirror - Material
Suprax
Secondary mirror material
Suprax
Secondary mirror diameter (mm)
82
Secondary mirror obstruction
20

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Gear reduction
1:8 fine focusing

Mount


GoTo control
no
Mounting type
Dobson
Type of build
Dobson

Tripod


Type
Rockerbox
Material
Wood

General


Series
Pro Discoverer Dobson
Total weight (kg)
34
Variant name
Travel L1/10 (Travel L1/10)

Area of application


Nature Observation
no
Moon & Planets
yes
Nebulae & galaxies
yes
Astrophotography
not recommended
Sun
no

Recommended for


Beginners
not recommended
Advanced
yes
