Telescopes > Omegon Telescope AC 90/500 AZ-Baby Visual Set
Product no.: 75950

Telescope AC 90/500 AZ-Baby Visual Set

RRP: $ 827.00 Our price:
$ 699.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2025!


Product description

The combination of Leofoto 364-C tripod, Omegon 90mm refractor and the Omegon AZ mount now available as a set for portable, visual observing - perfect for travelling too!

Omegon 90mm guide scope - the all-in-one travel telescope and guide scope

The Omegon 90mm telescope is ideal for wide-view observing or for guiding using faint stars. When smaller guide scopes fail because there is no bright star in their field of view, the Skywatcher 90mm refractor comes into its own. But there is even more to this telescope.

For nature-watching and astronomy - 90mm aperture achromatic refractor

Its focal length of only 500mm makes this achromatic refractor telescope extremely compact. This lets you use it not only as a guide scope, but also on holiday as a travel telescope for wide-field observing. An interior baffle system and a multi-coating on the lens doublet ensure reflections are minimized. Observe with a 2" eyepiece at low magnification and experience fantastic views of the night sky and nature. With magnifications of up to a respectable 80X, you can also 'go into detail' with the telescope.

Refractor as guide scope

The 90/500mm achromat comes with a double ring clamp and an adapted prism rail receiver, allowing you to attach it to any refractor mount equipped with a GP receiver. Use a double mounting and a guide scope mount for astrophotography and everything is ready for your imaging. Another option is to mount your guide scope via an optional guide scope ring clamp.

Crayford focuser

This 90mm refractor has a 2" Crayford focuser for a precise and easy focusing. Use your 2" eyepieces for wide-field observing or the 1.25" reducer-adapter for all your 1.25" eyepieces.

Sturdy metal OTA

The 90mm refractor features a rugged metal OTA with a retractable dew shield. This not only has high quality looks, but also helps to protect the optics.

The advantages in a nutshell:

  • achromatic 90mm aperture refractor
  • suitable as guide scope and travel telescope
  • complete package, with guide scope rings

The Leofoto LS-364C tripod has a maximum working height of 148cm without a ball head. However, this tripod is just 54cm long when folded and the minimum working height is 8cm! Despite its low weight of only 1.77kg, this Ranger tripod has a load capacity of no less than 25kg. The tripod is supplied with a carrying case, a multi-tool, and spikes. A centre column and a ball head are available separately.

Start the night with new zest

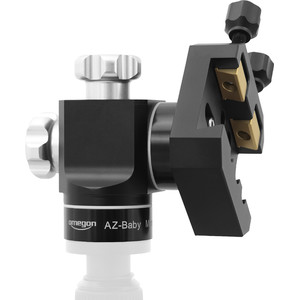

The Omegon Baby Mount - perfect for taking small telescopes

This ultra-compact mount is ideal for telescopes of up to 100mm lens diameter. Whether on a trip or simply for a spontaneous night's observing - it is always an advantage not to have to lug heavy equipment around. The Baby alt-azimuth mount moves so precisely that it still lets you observe even at higher magnifications.

The advantages in a nutshell

  • mini alt-azimuth mount for telescopes of up to 4kg in weight. Use your compact 80mm or 100mm refractor, a Maksutov OTA or a spotting scope
  • compact and lightweight - perfect for holidays or astronomy and nature-watching trips - fits in any suitcase and weighs only as much as a bottle of water
  • excellent workmanship - made entirely of anodized aluminium
  • use the Baby alt-azimuth mount on any camera tripod with 3/8" thread
  • large Vixen-style clamps for the usual prism rails - allowing you to mount your optics in seconds

A baby with pretty good genes

Very few mounts are as small and compact as this one! It is so compact that it fits in the palm of your hand - an advantage if you like things small and simple. But this Baby is anything but simple - its quality stands up well in any comparison with well-known brand mounts. As soon as you rotate it on its axes, you will be delighted with it - it will move your optics around smoothly and surprisingly precisely.

For small telescopes weighing up to 4 kg

Refractors, Maksutov or small Newtonians - this mount can carry any telescope OTA up to about 4kg in weight. Your telescope can be connected simply and quickly if it has a GP prism rail.

Where do you want to go to?

To quickly observe an interesting object? On a trip to Namibia? Or to fly off to see the next solar eclipse? The Baby mount is ideal for all of this and more. It fits into any suitcase or bag - so you can always have your astronomy equipment near at hand in the future!

Easy attachment

It can use any tripod with a 3/8 inch thread. This is the standard for camera tripods without a head. A heavy telescopic tripod is unnecessary.

A compact mount for small telescopes. Light luggage for any situation. Really, nothing more is required!

Specifications

Optics


Type
Refractor
Type of build
Achromat
Aperture (mm)
90
Focal length (mm)
500
Aperture ratio (f/)
5,5
Resolving capacity
1,15
Limit value (mag)
12,2
Light gathering capacity
165
Max. useful magnification
80
Tube weight (kg)
2,2
Tube construction
Full tube

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Backfocus (mm)
130

Mount


GoTo control
no
Mounting type
Azimuthal
Load capacity (kg)
4
Weight (kg)
1

Tripod


Type
Tripod
Material
Carbon
Max. tripod height (cm)
148
Min. tripod height (cm)
54
Weight (kg)
1,77
Accessory plate
no
Colour
black

Included accessories


Tube clamps
yes
Carry case
yes
Eyepiece adaptor
1,25" & 2"
Miscellaneous
Bag

General


Special recommendation
yes

Area of application


Astrophotography
not recommended
Nature Observation
yes
Moon & Planets
yes
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
yes
Advanced
yes
Observatories
no
