Telescopes > ProNewton > Omegon Telescope ProNewton N 203/1000 EQ-500 X
Product no.: 83174

Telescope ProNewton N 203/1000 EQ-500 X

RRP: $ 1,066.30 Our price:
$ 749.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

No delivery possible before Christmas. Order a voucher coupon!


  • Crayford focuser with ball bearings

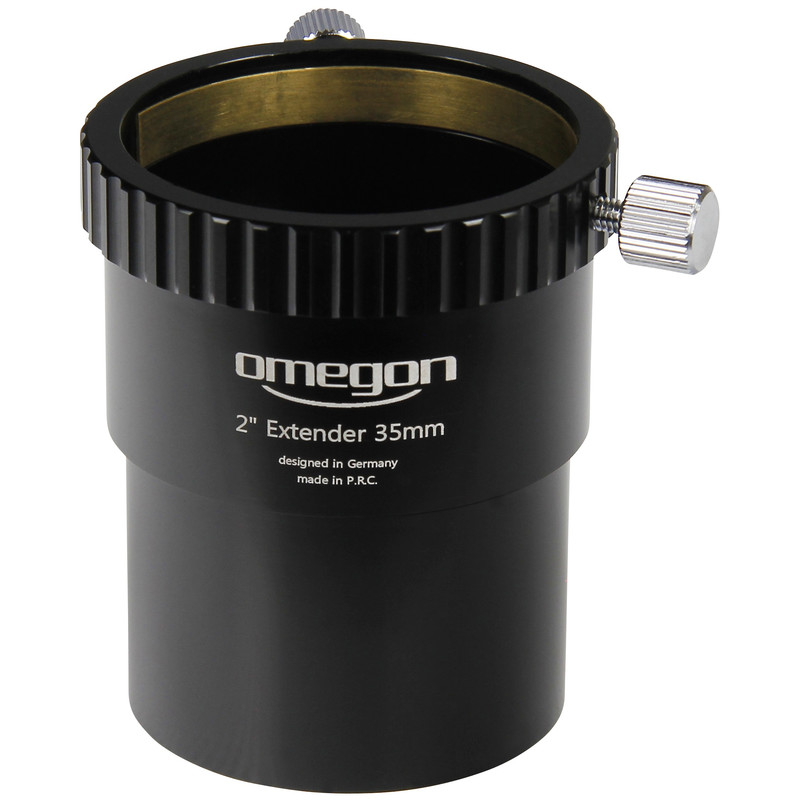

  • Extension tube included

Product description

More about the series ProNewton...

This set consists of:

Omegon Pro Newtonian - How to start your astronomy with a real boost
Enjoy sharply etched lunar craters, planets showing a wealth of detail, and deep sky objects that simply look brighter than through standard telescopes. The Omegon Pro Newtonian does not do things by halves - the workmanship and quality are first rate, ensuring everything works a treat for your exploration of the night sky.

The advantages in a nutshell

  • excellently engineered OTA - enjoy your observing for many years to come
  • main mirror with 94% reflection - brighter images and much more contrast than a standard mirror
  • 2" Crayford focuser - smooth focusing so you can easily find the exact point of focus

High quality metal OTA with excellent processing
The telescope's OTA offers you a sound introduction to a fascinating hobby. No cheap plastic, but metal together with excellent workmanship. This is an important prerequisite in the world of telescopes as it ensures you will continue enjoying your observing for many years to come.

The centrepiece is the main mirror, which is made from optical glass. In contrast to 'ordinary' glass, this offers a more stable shape during the cool-down phase, and that means a better image, even if the OTA has not yet completely equalised to the outside temperature.

Enhanced coating - 94% reflection for bright pictures
When you dive into the depths of space, you can see objects with your telescope that would never be visible to the unaided naked eye. What is important here is the aperture and the main mirror - with this telescope boasting 94% reflection. Enjoy extraordinary, high contrast images - letting you make out even the fainter deep sky objects.

2" Crayford focuser for the sharpness you need
The single-speed 2"Crayford focuser lets you easily focus with any eyepiece you want. The ball-bearing design enables feather-light and precise location of the exact point of focus possible. The bigger diameter allows you to overview a three times as big field of view - compared to a 1,25" focuser. Add a wide angle eyepiece and discover details of the Milky Way easily!

Thin spider and maximum contrast
Astronomers already know that a 'spider' here has nothing to do with the creepy-crawly which lives in your cellar. The secondary mirror spider holds the secondary mirror in position. The struts in this telescope's spider are only a few millimetres thick. The result is that the contrast is impressive.

Our tip - All around, a high quality OTA for getting started or for upgrading in astronomy.

Up to 10kg weight. But not one of those from the fitness studio.

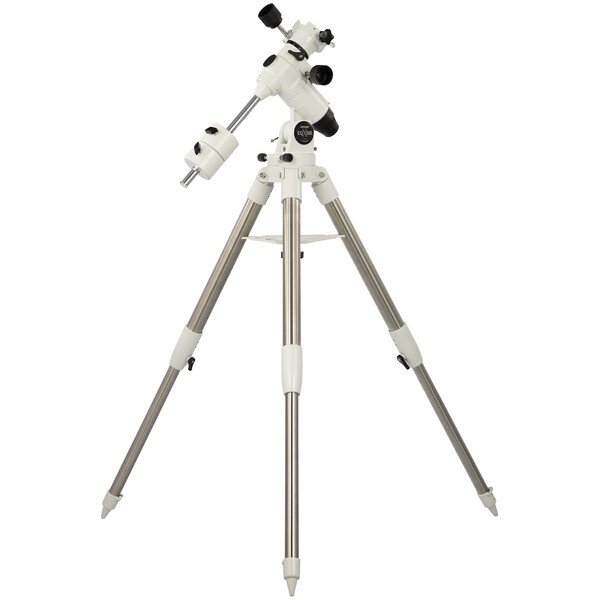

A new mount for your telescope? Changing, upgrading or just getting started? The Omegon EQ-500 X is a strong mount and carries smaller or medium-sized telescope tubes up to about 200mm aperture and 10kg in weight. The simple design and easy operation lets you get going quickly for your next night of observing.

The features at a glance:

  • Stable equatorial mount for smooth and low-vibration observing with small and medium-sized telescopes.
  • Simple navigation in any desired direction with the manual fine adjustment knobs. Perfect for visual observing.
  • Ball-bearing axes, for smoother and more accurate tracking towards your target object.
  • Stable tripod: made of stainless steel, for a solid base for your telescope.
  • Adjustment rings with scale, so that you can also find your target object from your star map.

Manual equatorial mount: track objects

The equatorial design makes it easy to track objects that would otherwise disappear from your field of view. You simply turn about the RA axis using the convenient fine adjustment and easily keep the planet or nebula in the field of view at every level of magnification. So your astronomy evening is not only fun for you, but for your whole family too.

Stronger mount: how a change can give you more pleasure

How long does your previous mount need to settle and deliver a stable image? It’s a fact that many mounts are too weak for your optical tubes. This is almost like an astro killjoy virus, which you can successfully overcome with this mount. Your refractor or medium-sized mirror telescope now sits much more stably and you benefit from better mechanics for more pleasurable observing.

Ball bearing axes for fluid movements

Here everything runs smoothly: the EQ-500 X mount is equipped with ball bearings in both axes. The movement of the axes is much more fluid - for pinpoint positioning without juddering, even at high levels of magnification.

Stable tripod

The height-adjustable tripod made of stainless steel is considerably more durable than other aluminum tripods. The solid spreader plate additionally serves as a safe storage place for seven 1.25" eyepieces and two 2" eyepieces - your accessories are close at hand all night.

Setting circles to find objects using to coordinates

Sometimes you need help, especially if you want to find a faint object. With a star map and the adjustment rings you can set up your target using celestial coordinates.

Specifications

Optics


Type
Reflector
Type of build
Newton
Aperture (mm)
203
Focal length (mm)
1000
Aperture ratio (f/)
5
Resolving capacity
0,58
Limit value (mag)
13,3
Light gathering capacity
820
Max. useful magnification
400
Tube weight (kg)
9,5
Tube material
Steel
Tube length (mm)
935
Coating
Aluminium and silicon dioxide
tube diameter (mm)
230
Tube construction
Full tube

Reflector


Main mirror´s construction
parabolic
Secondary mirror obstruction
31
Secondary mirror diameter (mm)
63
Ventilation for central mirror
yes
Primary mirror - Material
BK7
reflectivity
94

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Gear reduction
without
Load capacity (kg)
1
Adjustment range (mm)
59

Mount


Mounting type
Equatorial
Type of build
EQ-500 X
GoTo control
no
Motors
no
Load capacity (kg)
10
Weight (kg)
10
Polar elevation setting (°)
5 - 60
Mounting saddle
Vixen-Style
Diameter of counterweight bar (mm)
20

Tripod


Max. tripod height (cm)
102
Min. tripod height (cm)
61
Weight (kg)
7
Tripod leg diameter (mm)
45
Material
Steel
Accessory plate
yes

Included accessories


Finder scope
Red dot finder
Extension tubes
no
Tube clamps
yes
Eyepiece adaptor
1,25" & 2"
Prism rail
Vixen-Style
1.25'' eyepieces
25mm, 10mm
Polar finder scope <p>
no
Barlow Lens
2x

General


Series
ProNewton
Total weight (kg)
21

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
no
Astrophotography
no
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
yes
Advanced
no
Observatories
no

Product safety

manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de

Recommended accessories

Telescope accessories > Eyepieces (17)

Omegon Eyepiece case (not only) for Dobsonian telescopes

$ 349.00*
Telescope accessories > Filters (12)
Filters

Omegon Filters Nebula/ city light filter 1.25 ''

$ 39.90*
Telescope accessories > Barlow & Erecting Lenses (3)

Omegon 3x Barlow lens, achromatic, 1.25"

$ 49.90*
Telescope accessories > Astrophotography (3)

Omegon Easypic Universal Smartphone Adapter

$ 99.00*
Telescope accessories > Transport & storage (6)
Carry case

Omegon Carry case Newton 203/1000 (8" f/5)

$ 99.00*
Telescope accessories > Other (7)
Counterweight

Omegon Counterweight 2.6kg

$ 34.90*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (1)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Maintenance & Cleaning (4)

Omegon 7-in-1 lens cleaning set

$ 19.90*

*All prices include VAT plus shipping costs.

Omegon Telescope ProNewton N 203/1000 EQ-500 X

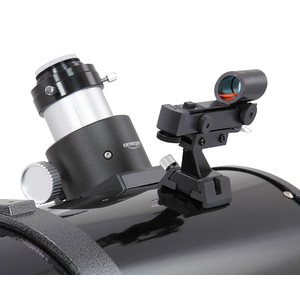

The 2" Crayford focuser always lets you focus precisely and absolutely backlash-free. Which eyepieces will fit in it? - they all do!

Omegon Telescope ProNewton N 203/1000 EQ-500 X
Red dot finder for easy location of astronomical objects.

Omegon Telescope ProNewton N 203/1000 EQ-500 X
Stainless steel tripod: also ensures a high degree of stability. Together with the mount: a solid base for all your observations.
Omegon Telescope ProNewton N 203/1000 EQ-500 X

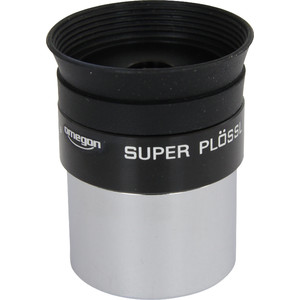

25mm Super Plössl
Omegon Telescope ProNewton N 203/1000 EQ-500 X
10mm Super Plössl
