Telescopes > LX85 > Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

Meade

Product no.: 59581

Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

~~$ 3,835.60~~ Now only:

$ 2,917.12 incl. VAT plus shipping costs

too expensive?

long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!

Product questions?

advice for Telescopes

Product description

More about the series LX85...

Specifications

Optics

Type

Refractor

Type of build

Apochromat

Aperture (mm)

80

Focal length (mm)

480

Aperture ratio (f/)

6

Resolving capacity

1,73

Limit value (mag)

11,3

Light gathering capacity

130

Max. useful magnification

160

Tube weight (kg)

3,1

tube diameter (mm)

114

Tube length (mm)

394

Tube material

Aluminium

Coating

multiple

Tube construction

Full tube

lens design

Triplet

Focuser

Type of build

Gear rack

Connection ( to eyepiece)

2

Connecting threaded socket (camera-side)

T2

Free aperture (mm)

64

Ring clamp

yes

Load capacity (kg)

3

Gear reduction

1:10 fine focusing

Rotating

yes

Mount

Type of build

LX85

Mounting type

Equatorial

Mounting saddle

Vixen-Style

Motors

Servomotors

Load capacity (kg)

15

Weight (kg)

4,9

GoTo control

yes

Cable-guide

external

Power consumption (mA)

5000

Power supply

12

GoTo control

Database

30.000

GPS

no

WIFI

no

GoTo Language

English

Software

AudioStar

Interfaces

Autoguider & AUX

PEC correction

Meade Smart Drive

Polar Alignment

Easy Polar Alignment

Tripod

Type

Tripod

Canibelle

yes

Tripod leg diameter (mm)

45

Accessory plate

yes

Max. tripod height (cm)

1105

Min. tripod height (cm)

800

Weight (kg)

18,6

Material

Aluminium

Included accessories

Finder scope

without

Deviating optics

no

Tube clamps

yes

Dew Shield

yes

Counterweights (kg)

4

Eyepiece adaptor

2" / 1.25"

Transport cases

yes

Polar finder scope <p>

no

cigarette lighter socket

no

General

Series

LX85

Total weight (kg)

17,5

Area of application

Astrophotography

yes (very good)

Moon & Planets

yes

Nature Observation

no

Nebulae & galaxies

yes

Sun

no (Only with appropriate Sun filter)

Recommended for

Beginners

no

Advanced

yes

Observatories

no

show more...

show less...

Downloads

Instruction Manual (EN)

Instruction Manual (DE)

Instruction Manual (FR)

Instruction Manual (DE)

Instruction Manual (FR)

Product safety

manufacturer: Meade Acquisition Corp. / Sea Freight, 89 Hangar Way, CA 95076 Watsonville, US, [email protected]

resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Product safety

Meade Apochromatischer Refraktor AP 80/480 Series 6000 LX85 GoTo

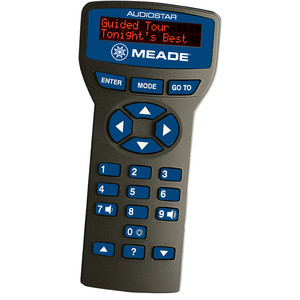

AudioStar
