Telescopes > LX90 > Meade Teleskop ACF-SC 203/2000 UHTC LX90 GoTo

Product no.: 17668

Teleskop ACF-SC 203/2000 UHTC LX90 GoTo

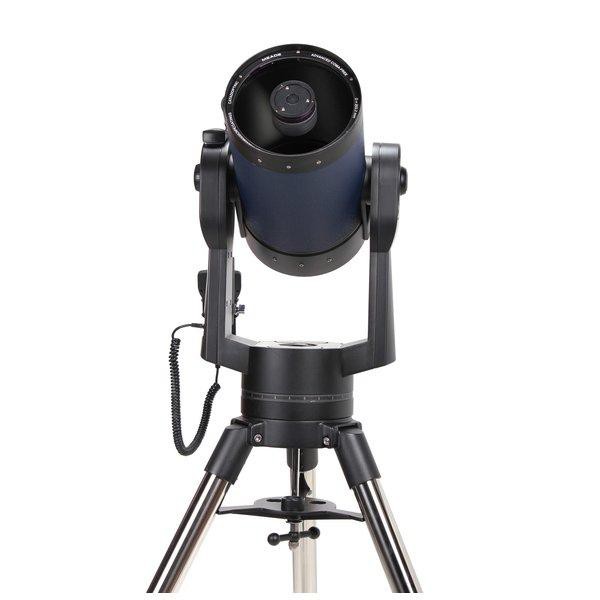

Name: Meade Teleskop ACF-SC 203/2000 UHTC LX90 GoTo
Brand: Meade
Price: 4199.87 USD

$ 4,199.87 incl. VAT, plus shipping costs

too expensive?

long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!

Product questions?

advice for Telescopes

Product description Specifications Downloads Recommended accessories Customer reviews (0)

Product description

More about the series LX90...

Specifications

Optics

A telescope tube is referred to as an optic because it contains the components necessary to collect and concentrate light.

Click to read more...

Type

There are basically two different types of telescope. A distinction is made between refractor (lens) and reflector (mirror) telescopes.

Click to read more...

Reflector

Type of build

Describes the exact structure of the telescope thereby further subdividing the different types of telescope.

Click to read more...

ACF-Cassegrain

Meade's ACF optical design eliminates the typical aberrations of all mirror optics.

Click to read more...

Aperture (mm)

Aperture

The aperture indicates the diameter of the objective lens or the mirror.

Click to read more...

203

Focal length (mm)

Focal length

This is the distance between the objective lens or mirror and the focal point.

Click to read more...

2000

Aperture ratio (f/)

Aperture ratio

Is the ratio of the aperture to the focal length of a telescope.

Click to read more...

Resolving capacity

The ability of the optic to discern the fine detail of objects that are close together.

Click to read more...

0,68

Limit value (mag)

Limit value

Describes the brightness of a star or point-shaped object, which can still just be distinguished by the telescope. The naked eye, for example, can make out stars with a magnitude of up to 6.

Click to read more...

13,3

Light gathering capacity

Light-gathering capacity of the telescope compared to the eye.

Click to read more...

840

Max. useful magnification

The telescope’s magnification should not exceed this factor, because otherwise the image will appear weak and dark.

Click to read more...

406

Coating

UHTC

This special multi-layer coating provides up to 15% more light transmission.

Click to read more...

Tube construction

Full tube

Reflector

Special characteristics which only reflectors possess, can be found under this heading.

Click to read more...

Correction plate - Material

Float glass

Primary mirror - Material

Pyrex glass

Secondary mirror material

Pyrex glass

secondary mirror design

hyperbolic

Main mirror´s construction

Main mirror construction

Here, the construction type means the geometric shape of the primary mirror.

Click to read more...

spherical

Ventilation for central mirror

Ventilation for primary mirror

Fan for a quicker alignment of the mirror temperature to the ambient temperature.

Click to read more...

corrector plate coatings

UHTC

Focuser

A focuser is used to hold an eyepiece. The image can be focussed using the focus wheels on the side.

Click to read more...

Connection ( to eyepiece)

Focusers are available in 1.25" or 2" formats. Many 2" focusers also have a 1.25" adapter.

Click to read more...

1,25"

Type of build

There are basically two different construction types: the rack and pinion focuser and the Crayford focuser.

Click to read more...

Internal

Mount

A mount is the foundation of an astronomical telescope. It usually consists of the mount head and an appropriate tripod.

Click to read more...

Mounting type

Are mainly differentiated between equatorial and altazimuth. A special type of altazimuth mount is the Dobsonian mount.

Click to read more...

Azimuthal

These astronomical mounts are particularly lightweight and compact.

Click to read more...

GoTo control

Object positioning system, available in real GoTo and also PushTo versions.

Click to read more...

yes

Tracking speed

6,5 - 3 - 1,5

Tracking speed

128 - 64 - 16 - 8 - 2 - 1

Power consumption (mA)

1200

Power supply

Type of build

Describes the exact construction of the particular mount and thereby further subdivides the different types of mount.

Click to read more...

LX90

Encoder

GoTo control

Database

30223

Software

AutoStar #497

Precision

GPS

The Global Positioning System simplifies the initialisation of a computerised control system.

Click to read more...

yes

Alignment method

AutoAlign, 2-star

GoTo Language

English

Tripod

The tripod is a part of the mount, it provides a stable stand and is usually adjustable in height.

Click to read more...

Type

Tripod

Height (cm)

76-112

Material

Steel

Included accessories

Many telescopes came with simple accessories.

Click to read more...

1.25'' eyepieces

Eyepieces are needed for observing. Depending on the focal length, you achieve a certain level of magnification.
The specification 1.25" refers to the diameter of the connector (1.25" = 31.8 millimetres).

Click to read more...

26mm

Finder scope

A mini telescope used to locate a celestial object. There are optical finders and red dot finders.

Click to read more...

8x50

Deviating optics

Erecting systems

A telescope always displays an object upside down. This law of optics can only be compensated for by an erecting system. Erecting lenses, diagonal mirrors or Amici prisms provide you with an upright image. Diagonal mirrors provide an upright but back-to-front image and Amici prisms provide an upright and right-sided image.

Click to read more...

1.25", 90° star diagonal

Software

AutostarSuite

General

Series

LX90

Fork-mounted telescopes with computer control for beginners and those upgrading.

Click to read more...

Special recommendation

yes

weight of the heaviest component (kg)

Total weight (kg)

Area of application

The area of application will give you a broad overview of the purposes for which the telescope is suited.

Click to read more...

Astrophotography

yes

Moon & Planets

yes

Nature Observation

yes

Nebulae & galaxies

yes

Sun

Telescopes for safe solar observing.

Click to read more...

no (Only with appropriate Sun filter)

Recommended for

Recommended for...

The classification of the telescopes according to their suitability for beginners, advanced or observatories is useful as an initial orientation.

Click to read more...

Beginners

Telescopes that are supplied as a complete system and are easy to operate.

Click to read more...

yes

Advanced

Telescopes for experienced observers, but also for ambitious beginners.

Click to read more...

yes

Observatories

Telescopes suitable for a fixed mount, whether that is in the garden or an observatory.

Click to read more...

show less...

Downloads

Instruction Manual (DE)

Instruction Manual (EN)
