Wide range of innovative products
In-house development & manufacturing
Telescopes > Pro APO > Omegon Apochromatic refractor Pro APO AP 102/714 ED Triplet OTA
Product no.: 14652

Apochromatic refractor Pro APO AP 102/714 ED Triplet OTA

RRP: $ 1,390.00 Our price:
$ 999.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

More about the series Pro APO...

The 'apo for everyone' is back - Omegon triplet apochromat with sturdy transport case

Do you want more contrast, sharper images? Do you want to experience brilliant star clusters and see planets more brilliantly? The Omegon triplet apochromat offers excellent ED optics with three lens elements and precision Crayford mechanics. This telescope is a pearl for every amateur astronomer who appreciates a high quality image. And as a rule, you will not pay more for these premium triplet telescopes than for a normal doublet ED refractor.

The advantages in a nutshell:

  • OTA with 3 lens element ED optics
  • 2" Crayford focuser with 1:10 reduction ratio
  • tube ring clamps with handle
  • mounting rail for mounts with GP receivers
  • removable dew shield
  • a particular advantage - includes a reinforced aluminium transport case

High-quality premium ED glass: Triplet optics with air gap for high contrast

The Omegon triplet apochromat excels with its exceptionally good craftsmanship. Perfectly fitting lens mounts and quality premium ED glass contribute to the extraordinary quality of this telescope.

Colour fringing has been significantly reduced even further, when compared to ED doublet optics, and can barely be measured. The fully-coated optics deliver the brilliant image sharpness and wonderful contrast that one normally only associates with much more expensive apochromats.

Precision focusing: 2" Crayford focuser with 1:10 reduction ratio

Successful observing can only be achieved via precise focusing! For this reason, the Crayford focuser is designed to operate extremely smoothly. The 1:10 reduction ratio lets the point of focus be found with ease, even at high magnifications.

One advantage for astrophotographers is that once you have your subject in focus you can lock down the focuser at that position via a locking screw.

Keep everything is secure: The transport case for your optics

We supply you with a sturdy carrying and transport case for your apochromat. Why? Because it is very important to keep your telescope well protected when transporting it. A premium instrument such as this requires a gentle treatment and a 'home of its own' - to ensure that it will provide you with many years of observing pleasure.

This Apochromat will provide you with a whole new observing experience: whether for visual use or for astronomical photography.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Our expert comment:

You can find further information about the Triplet ED Apochromat in this blogpost.

The 102ED triplet apochomat is just as impressive as the 127ED Omegon triplet apo. But its lower weight makes it even more suitable for taking with you on the plane, or for on holiday. Optically, the Omegon 102ED triplet apo is of the same superior quality as its bigger brother. But the much shorter focal length makes it possible to photograph even larger fields of view, which for useful, for example, with extremely large nebulae such as NGC 7000 (the North America Nebula) or large galaxies such as M31 (the Andromeda galaxy).

Visually, it cannot quite keep up with its big brother, as here the smaller aperture and associated lower resolution become noticeable. But the 102 Omegon triplet apo remains a very attractive proposition and more than holds its own with the competition. The Omegon 102ED triplet apo provides an instrument that provides a lot of fun for both beginners and ambitious amateur astronomers and is very difficult to beat on price for the performance it provides.

(Anderl Rodoschegg)

Specifications

Optics


Type
Refractor
Aperture (mm)
102
Focal length (mm)
714
Aperture ratio (f/)
7
Resolving capacity
1,13
Limit value (mag)
11,8
Light gathering capacity
210
Max. useful magnification
204
Tube material
Aluminium

Focuser


Type of build
Crayford
Connection ( to eyepiece)
2
Gear reduction
1:10 fine focusing

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Finder scope
without
Deviating optics
no
Transport cases
yes
Tube clamps
yes
Prism rail
Vixen-Style

General


Series
Pro APO
Special recommendation
yes
Total weight (kg)
5,3

Area of application


Moon & Planets
yes
Nebulae & galaxies
yes
Nature Observation
yes
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes

Product safety

manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de

Recommended accessories

Telescope accessories > Eyepieces (16)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Telescope accessories > Filters (12)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Telescope accessories > Prisms & Diagonal mirrors (3)
Amici prism

Omegon 1,25'' Amici Prism 90°

$ 169.00*
Telescope accessories > Astrophotography (14)

Omegon Smartphone holder for finder shoe

$ 44.90*
Telescope accessories > Transport & storage (5)
Carry case

Omegon carry case for 5" tubes/lenses

$ 82.08*
Telescope accessories > Other (7)

Omegon advanced finder scope mount

$ 14.90*
Observatories (1)

Omegon Tent observatory

$ 189.00*
Media (1)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (2)
Headlamp

Omegon LED headlamp

$ 13.90*
Maintenance & Cleaning (4)

Omegon 7-in-1 lens cleaning set

$ 19.90*

*All prices include VAT plus shipping costs.

Omegon Apochromatic refractor Pro APO AP 102/714 ED Triplet OTA

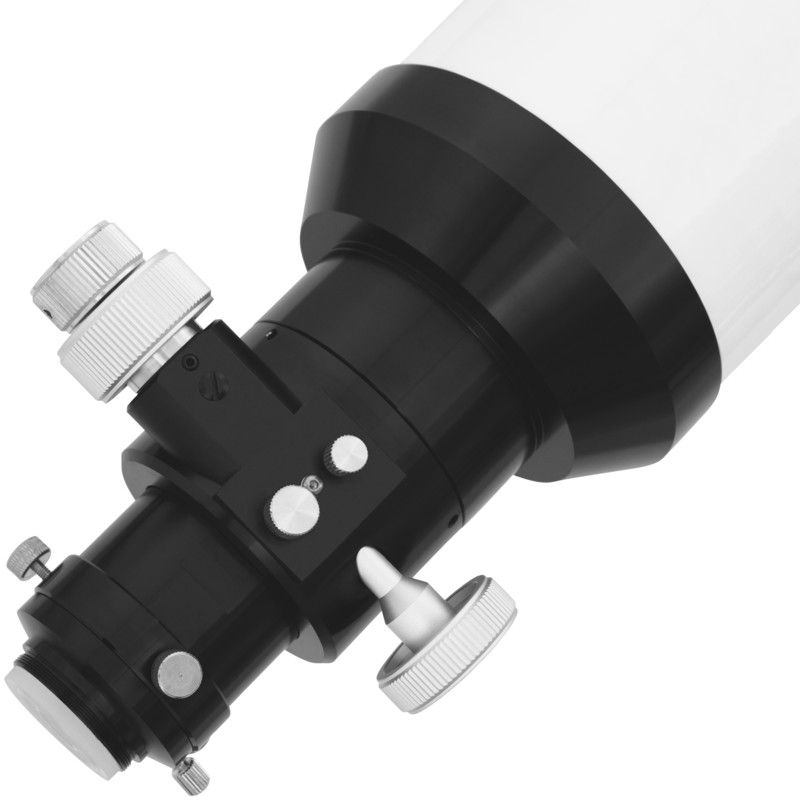

Crayford focuser with 1:10 reduction ratio

Omegon Apochromatic refractor Pro APO AP 102/714 ED Triplet OTA

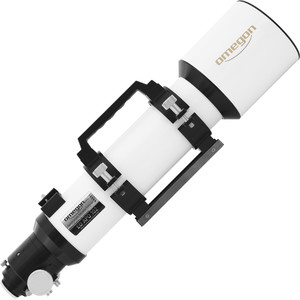

Tube rings with mounting rail and practical carrying handle
